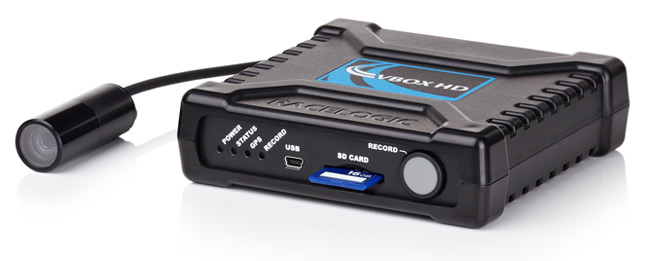

VBOX HD Motorsport


VBOX HD Motorsport

Designed with Motorsport in mind, the new VBOX HD gives you crisp, high definition images supported by high quality GPS data captured at 10 times per second.
The superfast, 720p global shutter CMOS sensor totally eliminates distortion caused by vibration or fast paced action which normally arises from using a rolling shutter, whilst its tiny size camera it extremely versatile and discrete.

Stunning HD graphics can be produced in post-processing and overlaid onto your recorded video, enhancing the footage even further.

• 10Hz GPS data logger
• 720p30 HD camera
• Global shutter CMOS sensor
• Records to SD card
• Predictive Lap Timing (with OLED display)
• Graphic overlay in post-processing
• MP4 video & audio recording
• Internal tank circuit for reliable recording
• Powerful data analysis software
• Up to 32 CAN channel inputs
• USB 2.0 interface


Camera Specifications
• Sensor: CMOS global shutter progressive
• Sensor size: 1/3″
• Sensor resolution: 1.3 Mega pixels
• Lens options: 60° or 133°
• Resolution: 1280×720
• Frame rate: 30fps
• Dynamic Range: 61.3 dB
• Cable length: 3m
• Size 60° option: 56.75mm length, Ø 21mm
• Size 133° option: 40.6mm length, Ø 21mm
• Camera Mounting: Standard 1/4″ UNC mounting thread
• Operating temperature: -30°C to +70°C

Recorder Specifications
• Size: 132 x 126.3 x 37mm (w x l x h)
• Media type: SD HC card or SDXC card (max. 128GB /FAT32)
• Video codec: h.264
• Video output: HD or analogue composite
• Audio codec: AAC
• Audio sampling frequency: 48kHz mono
• Bit rate: 10+ Mbps
• External power: 6-30v, approx. 7 Watts
• External audio: 3.5mm jack input
• GPS time stamp: 10 updates per second
• Operating temperature: -10°C to +55°C
• Storage temperature: -20°C to +60°C
• Weight: 266g
