VBOX SPORT

0
100

vox sport

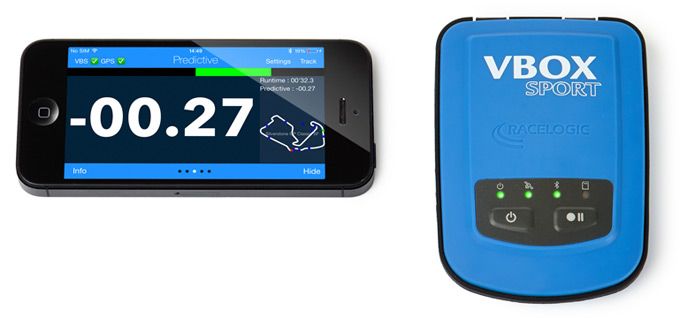

A lightweight, portable data logger that can be used in any vehicle and environment to measure performance or lap times.

The VBOX Sport can be used as a stand-alone logger or connected to an iOS device via Bluetooth.

Features
• 20Hz GPS engine
• Bluetooth interface to iPhone™ or iPad™
• Over 6hr battery life
• Internal rechargeable battery
• Internal or external GPS antenna
• Free Performance Test and Laptimer iPhone™App available from Apple App Store
• Robust, waterproof, lightweight enclosure
• USB charging
• SD card logging
• Herbert Richter mounting system
• Free data analysis software
• Compatible with Harry’s Lap Timer app, which is available for iOS and Android

GPS Specifications
Velocity
• Accuracy: 0.1 Km/h
• Units: Km/h or Mph
• Update rate: 20 Hz
• Minimum velocity: 0.1 Km/h
• Maximum velocity: 1800 km/h
• Resolution: 0.01 Km/h

Acceleration
• Accuracy: 0.5 %
• Maximum: 4 G
• Resolution: 0.01 G

Heading
• Resolution: 0.01° s
• Accuracy: ±0.2° s

Position
• 2D Position: ±5m 95% CEP *
• Height: 5 Meters 95% CEP *
*95% CEP (Circle of Error Probable) means 95% of the time the position readings will fall within a circle of the stated radius

Environmental and Physical
• Input Voltage: +5 Volts only
• Power: 2.5 W max. (charging)
• IP rating: IP65 (with connector bungs fitted), IP20 (without connector bungs fitted)
• Size: 104.5mm x 72.8mm x 25.1mm
• Weight: 130g
• Storage temperature: -20°C to +60°C (max. limits), -20°C to +35°C for maximum battery life
• Operating temperature:  -20°C to +55°C, 0°C to +45°C (whilst charging battery – charger will shut down outside this range)
